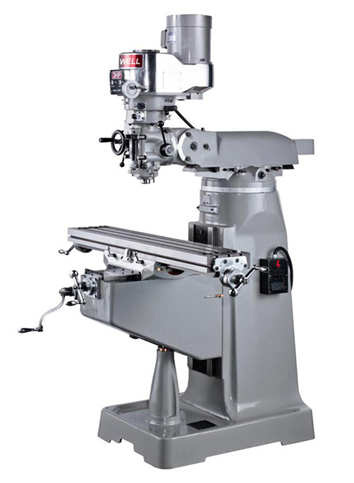

5MODEL: 2VS
2VS SPECIFICATIONS
Specifications |
2VS |
| Table size | 42" x 9" |
| Table travel | 711 mm |
| Saddle travel | 305 mm |
| Knee travel | 368 mm |
| Quill diameter | 85.725 mm |
| Quill travel | 127 mm |
| Ram travel | 368 mm |
| Spindle motor | 3 HP |
| Spindle taper | R8 (Opt.NT-30) |
| Quill power feedrate | 0.0381, 0.0762, 0.152 mm / Rev. |
| Spindle speeds RPM | 60 - 500 - 4200 |
| Weight | 1100 kgs |
All specifications and designs are subject to change without notice.
| Standard equipment | Optional accessories |
| Hardened-ground table | Digital read-out | Up / down feed system |
| Front / back way cove | Power-feed system | Electrical lubrication system |
| Grounded and hardened 3 axis slide way | Electrical cabinet | Work light |
| Draw bar | Coolant system | Leveling pad |
| tool box and tool set | coolant tray |
